FH® 310S Iuncta Fixture / Rack | Pro Gas & Plasma Nitriding Furnaces
Key Beneficia
- Sincerus 310S (UNS S3108)
Superior chromium et nickel contenta quam 304/309 — resistentia oxidationis superior et vires repunt usque ad 650°C. - Optimized Welding fornacis ipsum
Laser TIG hybrid glutino cum calore minimo initus - pactionem reducit sensitizationem et periculum crepuit in calefactione cyclica. - Auctus Anti-Creep Design
Costa FEA-optimized layout et gussets - minimizes deflectens ac depravatio sub onere ad temperaturas nitridendas. - Libitum Anti-Stick Coating
FH® ceramic-substructio efficiens reducit partem adhaesionem et retardat nitridum buildup in eculeo superficierum (extendit purgationem intervallum). - Custom Sizes & configurations
Singulus vel multi-strati, rotundi vel quadrati, ad fornacem tuam retortam et partem geometriae destinantur.
Technical Specifications
| Parameter | Precium |
| Materia | 310S (UNS S3108) - certified |
| Maximilianus. Continuus Temp. | 650° C (brevis temporis 700°C) |
| Superficies Curatio | As-iuncta prae-oxidized (vexillum) ; ad libitum anti-nitriding coating |
| Maximilianus. Load Per Layer | Ad CCC kg (dependens consilium) |
| Processus welding | Laser TIG hybrid |
| Standard Size (L×W×H) | 600×600×H mm (consuetudo available) |
| Expectata Service Vita | 80-150 circuitus (cum regularis purgatio) |
| Materia test certificate (MTC) included with every rack | |
Cur FH® 310S Quatit fixtures?
Materia 1. Ius ad Nitriding Jobs
310S probatur, cost-efficax electio ad fixtures nitridendas. Meliora praebet summus temperaturas vires quam 304 et resistit longiori quam 309. FH® utitur modo prime 310S cum plena traciabilitate.
2. Quod Last Welds
Pauperibus glutino fatiscunt et omissis partibus. Noster processus laser-TIG hybrid lenis, plena penetratio impellit cum praecipitatione minima carbidi — critica pro cycli scelerisque resistentia.
3. Practical Design for Real Fornax Use
- Marginibus rotundatis periculum arcuum reducere in plasma nitriding
- Gusseted angulis ne eculeo tortuosus
- Pedes vel stat custodi partes fornacem off pavimento
4. Honesta ductu
Non affirmamus 310S nitriding "immune" esse - stratum nitridum super tempus evolvere. Sed recte purgatio (exempli gratia, rubigine omnis 30-50 circuitus), FH® 310S quatit certas, praevidere operas gratuito liberare.
Applications
1. Gas nitriding (ammoniae atmosphaera)
2. Plasma / ion nitriding
3. Temperatio post nitriding
3. Partes: anni, spicula, dies, formae, fasteners, valvae partes
Materia Grade Tabula:
| Calor repugnans Ferro | |||||||||||||
| / | GB | DIN | ASTM | JIS | Chemical Compositio (%) | Maximum Operatio Temperature | |||||||
| C | Si | Mn | Cr | Ni | Nb/Cb | Mo | Other | ||||||
| 1 | ZG40Cr27Ni4 | 1.4823 | HD | SCH11 | 0.30 - 0.50 | ≤2.00 | ≤1.00 | 24.00 - 28.00 | 4.00 - 6.00 | - | ≤0.50 | - | 1050℃ |
| 2 | ZG40Cr22Ni10 | 1.4826 | HF | SCH12 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 19.00 - 23.00 | 8.00 - 12.00 | - | ≤0.50 | - | 950℃ |
| 3 | ZG30Cr28Ni10 | - | ILLE' | SCH17 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 8.00 - 11.00 | - | - | - | 1050℃ |
| 4 | ZG40Cr25Ni12 | 1.4837 | HH | SCH13 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 27.00 | 11.00 - 14.00 | - | ≤0.50 | - | 1050℃ |
| 5 | ZG30Cr28Ni16 | - | HI* | SCH18 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 14.00 - 18.00 | - | - | - | 1100℃ |
| 6 | ZG40Cr25Ni20Si2 | 1.4848 | HK | SCH21 | 0.30 - 0.50 | ≤1.75 | ≤1.50 | 23.00 - 27.00 | 19.00 - 22.00 | - | ≤0.50 | - | 1100℃ |
| 7 | ZG30Cr20Ni25 | - | HN | SCH19 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 19.00 - 23.00 | 23.00 - 27.00 | - | - | - | 1100℃ |
| 8 | ZG40Cr19Ni39 | 1.4865 | HU | SCH20 | 0.35 - 0.75 | ≤2.50 | ≤2.00 | 17.00 - 21.00 | 37.00 - 41.00 | - | - | - | 1020℃ |
| 9 | ZG40Cr15Ni35 | 1.4806 | HT | SCH15 | 0.35 - 0.70 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1000℃ |
| 10 | ZG40Cr25Ni35Nb | 1.4852 | HPCb | SCH24Nb | 0.30 - 0.50 | ≤2.00 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | 0.80 - 1.80 | ≤0.50 | - | 1100℃ |
| 11 | ZG40Cr19Ni39Nb | 1.4849 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 18.00 - 21.00 | 36.00 - 39.00 | 1.20- 1.80 | ≤0.50 | - | 1100℃ |
| 12 | ZG40Cr24Ni24Nb | 1.4855 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 23.00 - 25.00 | 23.00 - 25.00 | 0.80 - 1.80 | ≤0.50 | - | 1050℃ |
| 13 | ZG40Cr25Ni35 | 1.4857 | HP | SCH24 | 0.35 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1100℃ |
| 14 | ZG1Cr20Ni32Nb | 1.4859 | - | - | 0.06 - 0.15 | 0.50 - 1.50 | ≤2.00 | 19.00 - 21.00 | 31.00 - 33.00 | 0.50 - 1.50 | ≤0.50 | - | 1050℃ |
| 15 | ZG45Cr12Ni60 | - | HW | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 10.00 - 14.00 | 58.00 - 62.00 | - | - | - | 1100℃ |
| 16 | ZG45Cr18Ni66 | - | HX | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 64.00 - 68.00 | - | - | - | 1100℃ |
| 17 | ZG1Cr28Co50 | 2.4778 | - | - | 0.05 - 0.25 | 0.50 - 1.00 | ≤1.50 | 27.00 - 30.00 | ≤1.00 | ≤0.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 18 | ZG30Cr28Co50Nb | 2.4779 | - | - | 0.25 - 0.35 | 0.50 - 1.50 | 0.50 - 1.50 | 27.00 - 29.00 | - | 1.50 - 2.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 19 | ZG40Cr28Ni48W5 | 2.4879 | - | SCH42 | 0.35 - 0.55 | 1.00 - 2.00 | ≤1.50 | 27.00 - 30.00 | 47.00 - 50.00 | - | ≤0.50 | W:4.0 - 5.5 | 1200℃ |

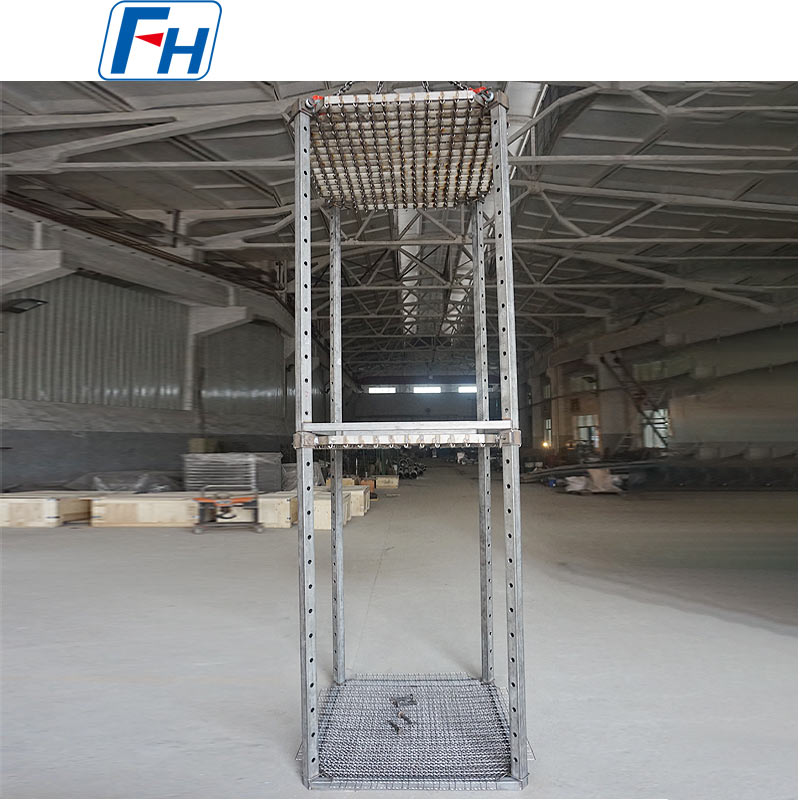

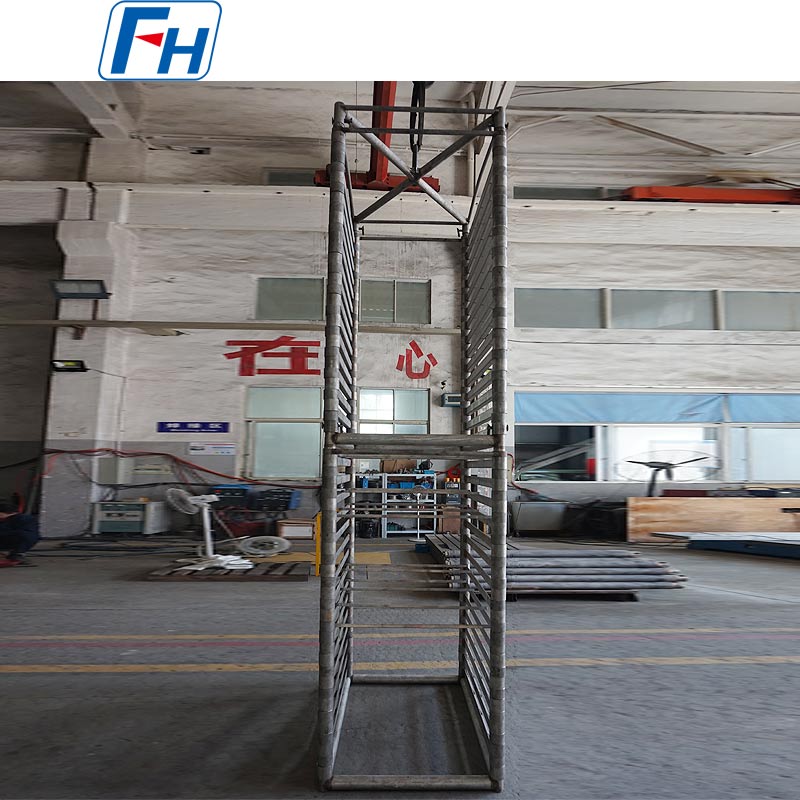

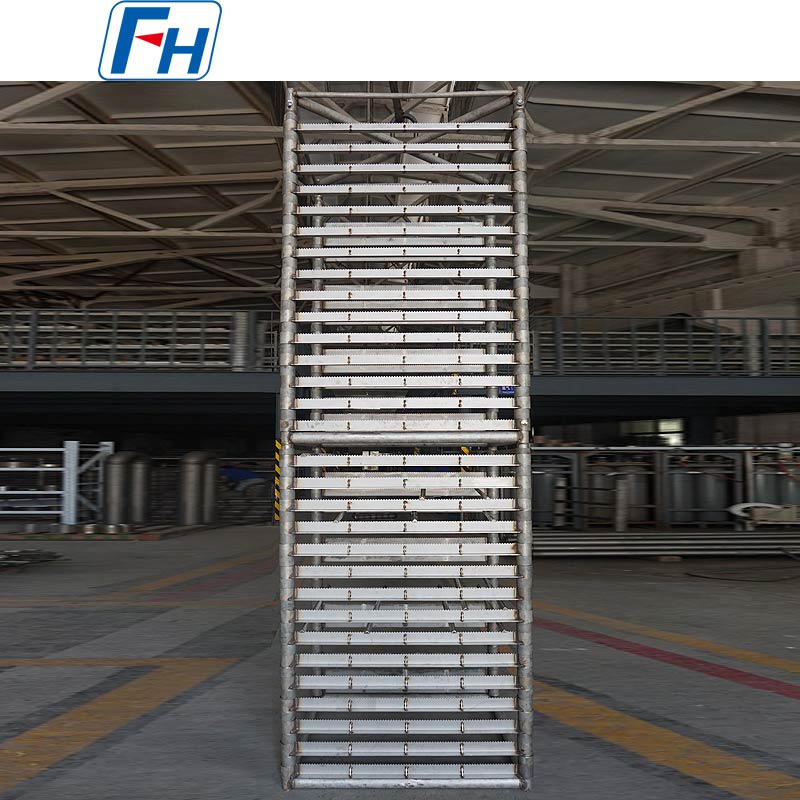

Genuina Photos of FH® Caloris Curatio Fixtures
Processus ordinans
- Provide fornacem ID, partem dimensionum, et massam vulgare pondus
- FH® turma 3D layout et onus calculos proponit
- Adfirmare efficiens (vexillum vel anti-baculus)
- Productio: 10-15 operantes dies pro consuetudine magnitudinis
- Partus includit MTC, inspectiones photographicas, et primi usus dux
FAQ:
Q1: Quamdiu 310S tortus durare potest in fornace nitridensi?
A: Cum regularis purgatio (singulis 30-50 cyclis), FH® 310S eculeo typice durat 80-150 circuitus. 310S outperforms 304/309, sed stratum nitridum superficiei super tempus explicabit. Ad longissimam vitam vel sarcinas gravissimas, cogita Inconel - consule quaeso.
Q2: Quomodo mundam et eculeum teneo?
A: Levis capita uredine ( globuli vitrei , ≤0.3 MPa ) vel mitis spicarum crustulum 30-50 singulis cyclis. Non utuntur setis carbonis vel stridoribus graves – iacuit oxydatum tutelae laedunt.
Q3: Num eculeo stamine vel sag in nitridicae temperaturae (600-650°C)?
A: Minimal. FH® pluma torquet FEA-optimized costas et gussets. Typical deformatio irrepentes est <2 mm per 500 mm longitudo post 100 cyclos. DCL°C inflexionis accelerat vel excedens.
Q4: An tunica nitriding an anti-ne offeres? Quid igitur facit?
A: Ita. Nostra ad libitum ceramic-substructio efficiens signanter retardat aedificare nitridum, purgatio extendit intervallum ad 80-100 circuitus. Litura consumabilis est et ex FH® restitui potest.
Q5: Quid est warantiam tuam et tu praebes testimoniales materiales?
A: 12 menses contra vitia fabricanda (rimas pugillo, vitia materialia). Superficies nitriding et gradatim inflexionis normales sunt induti - non opertae. Omnis eculeo venit cum 310S molendini test libellum (MTC).
