FH® Bene genus fornacis Base Tray
Key Beneficia
- Gravis-Load supportantes capacitatem
Costae structurae firmatae et opportuna subsidia pedum pondus aequaliter distribuunt — altas acervos partium sustinet vel plures sportas sine centro deflectens. - Princeps Creep virtus Materia
1.4849, 310S vel 1.4828 admixtiones caloris obsistens stabilitatem dimensivam in 850-1050°C conservant - nullam progressivam deformationem supra centenas cyclos. - Gas Circulation Optimized
Pedes elevati intervallum faciunt inter fundum repositorium et fornacem – gas vel atmosphaeram calidam permittit ut sub infima iacuit pro calefactione uniformi effluere. - Anti-Carburization / Anti-Nitriding
Admixtiones summi Pii (1.4849 / 1.4828) resistunt carbonis et nitrogenis penetrationi - vitam servitutem in atmosphaerae infestantibus extendit. - Consuetudo Figura & Size
Circularis vel rectangula - praecise matched cum diametro interna fornace vel dimensionibus tuis. Segment bene magna diam.
Technical Specifications
| Parameter | Precium |
| Typical materiae | 1.4849, 310S, 1.4828. |
| Maximilianus. continuus temp. | 1050°C (1.4849) / 950°C (310S) / 1000°C (1.4828) |
| Figura | Circularis (vexillum) seu rectangulum |
| Altitudo pedum firmamentum | 50 – 200 mm (consuetudo) |
| Eget exemplar | Aperta eget / lammina perforata / solida iacta |
| Maximilianus. onus | 500 - 3000 kg (dependens consilium) |
| Fabricatio | Subtilitas glutino seu investment mittentes |
| Vexillum diametri | 600 mm, 800 mm, 1000 mm, 1200 mm. |
| Expectata servitium vitae | 300 - 600 circuitus (prout materia & atmosphaera) |
| Materia test certificatorium (MTC) includitur cum omni curationis FH® caloris basis lance | |
Cur elige FH® Bene-typus fornacis Base Trays?
1. Fundamentum totius Lond
Basis lance omnia supra se sustinet. Si despondet, rimas vel deficiat, tota massa corrumpitur - partes teneant, canistra alligant, calefactio inaequale fiat. FH® scutra basi machinata sunt specialiter ad munus criticum.
2. Material Electio Libri
| Material | Max Temp | optimus For |
| 310S | 950°C | General carburizing / obdurare, onera modica |
| 1.4828 | 1000°C | Superior temperatus furnum, bonum anti-carburizationem |
| 1.4849 | 1050°C | Onera gravia, circuitus longi, atmosphaeris infestantibus carburizing |
| Projice Ni-base | 1100°C | Conditiones extremae (special order) |
3. Design Features quod materia
| Feature | Beneficium |
| Subtus costa auctus | Prohibet centrum deflectens sub oneribus |
| Erexit firmamentum pedes | Permittit gas fluxus in fundo layer - uniformis calefactio |
| Lenis summo superficies | Stabilis basis pro positis cophinis |
| Anguli rotundae (rectangularis) | Reduces accentus concentration |
| Constructione segmentis (diametris magnae) | Securus institutionem per foramen summo |
| Pre-superficies oxidized | Formae tutela oxydatum iacuit - reduces scaling |
4. Anti-Carburization = vita longior
- In fornacibus carburizing, carbonis fercula ordinaria penetrat et embrat. FH® utitur:
- Summus Pii admixtus (1.4828, 1.4849) - silicon impedimentum facit contra diffusionem carbonis
- Pre-oxidatio curatio - Cr₂O₃ firmum gignit / SiO₂ layer
- Superficies lenis - reduces carbonis adhaesio et fuligine buildup
Applications
- Bene-genus / fovea carburizing fornacibus
- Bene type furnum fornaces
- Bene genus fornacibus temperans (medium caliditas)
- Bene-genus fornacibus nitriding gas (cum 310S vel 1.4849)
- Partes: magni anni, spicula, annuli, dies, instrumentum, fistulae longae, iactus gravis
Materia Grade Tabula:
| Calor repugnans Ferro | |||||||||||||
| / | GB | DIN | ASTM | JIS | Chemical Compositio (%) | Maximum Operatio Temperature | |||||||
| C | Si | Mn | Cr | Ni | Nb/Cb | Mo | Other | ||||||
| 1 | ZG40Cr27Ni4 | 1.4823 | HD | SCH11 | 0.30 - 0.50 | ≤2.00 | ≤1.00 | 24.00 - 28.00 | 4.00 - 6.00 | - | ≤0.50 | - | 1050℃ |
| 2 | ZG40Cr22Ni10 | 1.4826 | HF | SCH12 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 19.00 - 23.00 | 8.00 - 12.00 | - | ≤0.50 | - | 950℃ |
| 3 | ZG30Cr28Ni10 | - | ILLE' | SCH17 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 8.00 - 11.00 | - | - | - | 1050℃ |
| 4 | ZG40Cr25Ni12 | 1.4837 | HH | SCH13 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 27.00 | 11.00 - 14.00 | - | ≤0.50 | - | 1050℃ |
| 5 | ZG30Cr28Ni16 | - | HI* | SCH18 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 14.00 - 18.00 | - | - | - | 1100℃ |
| 6 | ZG40Cr25Ni20Si2 | 1.4848 | HK | SCH21 | 0.30 - 0.50 | ≤1.75 | ≤1.50 | 23.00 - 27.00 | 19.00 - 22.00 | - | ≤0.50 | - | 1100℃ |
| 7 | ZG30Cr20Ni25 | - | HN | SCH19 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 19.00 - 23.00 | 23.00 - 27.00 | - | - | - | 1100℃ |
| 8 | ZG40Cr19Ni39 | 1.4865 | HU | SCH20 | 0.35 - 0.75 | ≤2.50 | ≤2.00 | 17.00 - 21.00 | 37.00 - 41.00 | - | - | - | 1020℃ |
| 9 | ZG40Cr15Ni35 | 1.4806 | HT | SCH15 | 0.35 - 0.70 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1000℃ |
| 10 | ZG40Cr25Ni35Nb | 1.4852 | HPCb | SCH24Nb | 0.30 - 0.50 | ≤2.00 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | 0.80 - 1.80 | ≤0.50 | - | 1100℃ |
| 11 | ZG40Cr19Ni39Nb | 1.4849 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 18.00 - 21.00 | 36.00 - 39.00 | 1.20- 1.80 | ≤0.50 | - | 1100℃ |
| 12 | ZG40Cr24Ni24Nb | 1.4855 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 23.00 - 25.00 | 23.00 - 25.00 | 0.80 - 1.80 | ≤0.50 | - | 1050℃ |
| 13 | ZG40Cr25Ni35 | 1.4857 | HP | SCH24 | 0.35 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1100℃ |
| 14 | ZG1Cr20Ni32Nb | 1.4859 | - | - | 0.06 - 0.15 | 0.50 - 1.50 | ≤2.00 | 19.00 - 21.00 | 31.00 - 33.00 | 0.50 - 1.50 | ≤0.50 | - | 1050℃ |
| 15 | ZG45Cr12Ni60 | - | HW | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 10.00 - 14.00 | 58.00 - 62.00 | - | - | - | 1100℃ |
| 16 | ZG45Cr18Ni66 | - | HX | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 64.00 - 68.00 | - | - | - | 1100℃ |
| 17 | ZG1Cr28Co50 | 2.4778 | - | - | 0.05 - 0.25 | 0.50 - 1.00 | ≤1.50 | 27.00 - 30.00 | ≤1.00 | ≤0.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 18 | ZG30Cr28Co50Nb | 2.4779 | - | - | 0.25 - 0.35 | 0.50 - 1.50 | 0.50 - 1.50 | 27.00 - 29.00 | - | 1.50 - 2.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 19 | ZG40Cr28Ni48W5 | 2.4879 | - | SCH42 | 0.35 - 0.55 | 1.00 - 2.00 | ≤1.50 | 27.00 - 30.00 | 47.00 - 50.00 | - | ≤0.50 | W:4.0 - 5.5 | 1200℃ |

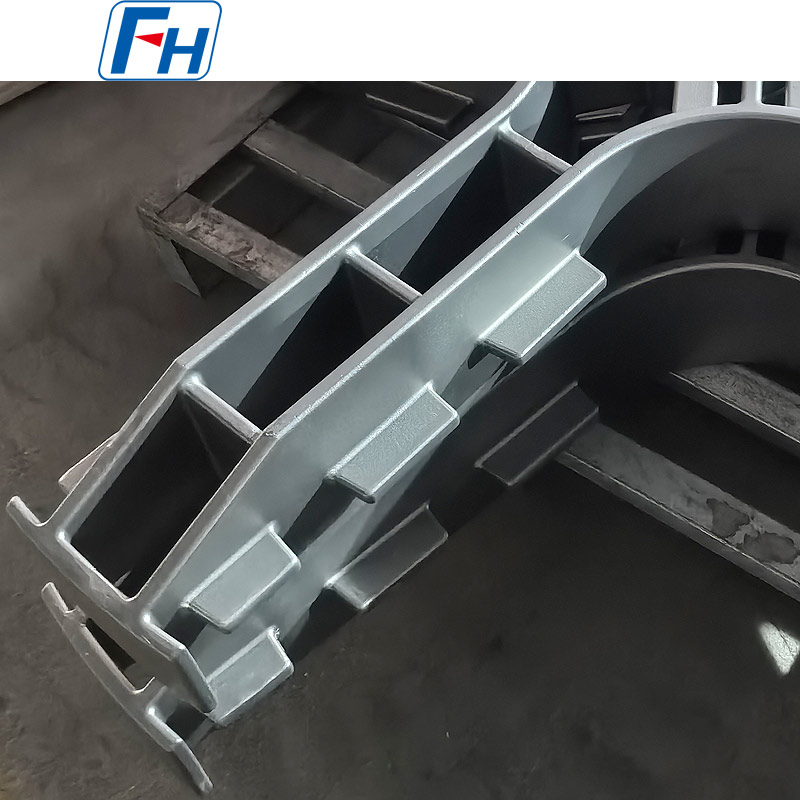

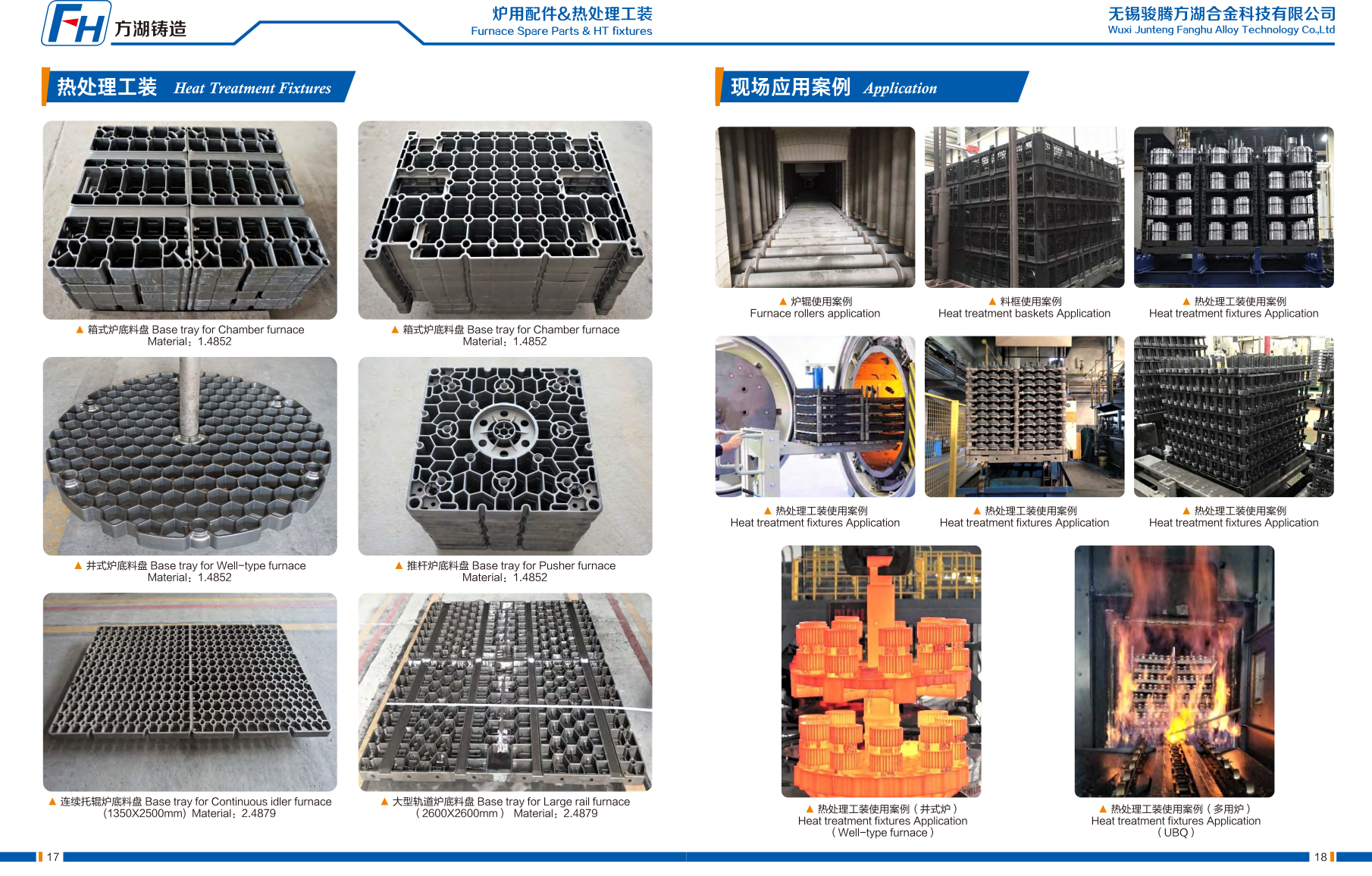

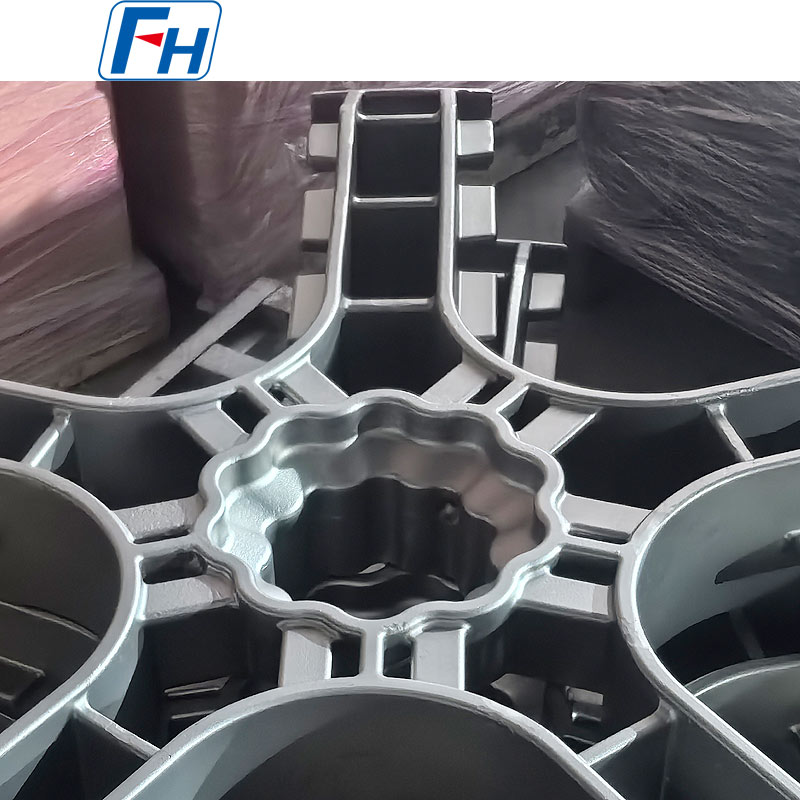

Genuina Photos of FH® Caloris Curatio Base Trays
Processus ordinans
- Provide fornacem diametri internam (seu longitudinis latitudo) et profunditatem
- Share max onus pondus et temperatus operating
- Specificare atmosphaeram (aerem, carburizing, endogas, nitrogen, ammoniacum)
- FH® ponit gradum materialem, exemplar eget, altitudo pedis, et layout costa
- Productio: 10-20 opus diebus
- Partus includit: MTC, idipsum, inspectionem fama, institutionem ductor
FAQ:
Q1: Cur mihi fornacem putei typus, speciali basi ferculo indigeo? Nonne ego iustus canistro in fornace fornace uti soleo?
A: Ponens canistra directe in fornacem contignationem caudices gas circulationem sub fundo iacuit, calefactio inaequalis causans. Etiam omne pondus in parva area contactu colligit. FH® bases scutellae plumae erectae pedes pro fluxu gasi et costis aucti ad onera gravia aequaliter distribuenda - impediunt tam inaequale calefactionem et defectum praematura lance.
Q2: Quam materiam commendas pro bene-typo carburizing fornacem 930°C cum 1200 kg totali onere?
A: 1.4849 commendatio nostra est. Optimum serpentium praebet vires et anti-carburizationem pro oneribus oneribus 930°C. Expectata vita servitii: 400-600 circuitus. 310S confinio esset in eo onere et temperamento - expectes deflectens post 150-200 circuitus. Vitacycli sumptus analysis praebere possumus ad auxilium vobis decernere.
Q3: Quomodo basis purgo et lancem teneo?
A: Singulis 100-150 cyclis, repositorium in clausura schedula auferendum et sonum leviter globuli ( globuli vitrei, ≤0.3 MPa ) ad carbonem fuliginem et scalam laxiorem removendum. Reprehendo in plano idipsum. Si sag 5 mm super 1000 mm excedit, considera repositum vel reparationem. Noli tundere aut corrigere calore - haec accentus puncta inducit quae crepuerunt ducunt.
Q4: Fornax mea bene typus est 1400 mm diametri. Potesne lancem unam basim facere?
A: Pro diametris super 1000 mm, designationes divisas typice commendamus (3-4 fragmenta interlocking). Segmenta faciliora sunt per foramen cacumen installare sine fornace intrans. Meliorem etiam expansionem scelerisque tractant quam una magna pars. Etiam unam partem facere possumus si fornax tua ad latus vel fundum accessum permiserit – modum accessum confirmare placet.
Q5: Potestne haec base lance adhiberi in fornacem nitriding gas bene typus?
A: Ita. Pro gas nitriding (500-580°C), commendamus 310S vel 1.4849. Ambae nitridenti embrittioni meliori resistunt quam gradibus inferioribus. Nota omnia ferramenta chalybis immaculata evolvere stratum nitridum superficiei super tempus – regularis purgatio singulis 50-80 cyclis commendatur. Ion enim nitridens, commendamus superficies laeves et margines rotundos ad arcus reducendos.
Q6: Quid est warantiam tuam et tu praebes testimoniales materiales?
A: 12 menses contra defectus fabricandi (rimas pugillares, mendas mittentes, defectus materiales). Normales serpunt, superficies carburization/nitriding, et paulatim deflectens considerantur normalis indumentum - non opertum. Quaelibet basis lance venit cum testi materiali certificatorio (MTC) ad plenam traceability. Weld inspectionem auditiones praesto sunt ad petitionem.
