FH® Support Brackets | Calor curatio fixtures stat

Notam: FH®

Certification: ISO9001, ISO14001

Materia: Calor repugnans Ferro

Gradus materialis: HT

Magnitudo: 832x190.5x25.4mm or Nativus Secundum tuum Miscellaneous

Temperatus operating: 980℃

MOQ: 2 Pieces

FH® Support Brackets & Rack Stands | Gravis Officium Caloris Curatio Fixture subsidia

Key Beneficia

Gravis-Load supportantes
Consilium confirmatum graves acervos canistri et partes magnas sustinet - ruinam prohibet et oneraturam stabilem conservat.
Summus Temperatus Fortitudo
Admixtionum resistentiarum fabricata - integritatem structuram conservat in fornace temperaturas operating usque ad 1150°C.
Subtilitas iuncta Construction
Laser TIG glutino plenae subtilitatis - puncta non infirma, nulla spat- tas, nulla contractio guttatim contagium.
Stacking Compatibility
Seamlessly cum FH® canistris, scutellis, et gridis interfacies voluit - altitudinis et alignment consistent.
Custom configurations
Quaelibet altitudo, latitudo, vel onus capacitas - ad speciem fornacem et partem requisita tua destinata.

Technical Specifications

Parameter	Precium
Materiae	310S, 1.4806, 1.4848, 1.4849, 2.4879, Inconel
Maximilianus. continuus temp.	450°C - 1200°C (prout materia)
Facultatem per bracket onus	100 kg - 2000 kg (dependens consilium)
Altitudo range	50 mm - 500 mm (consuetudo available)
Top interface	Plana / slotted / clavum locatum / consuetudo
Solum interface	Flat / pedes / anti-lapsus
Fabricatio	Subtilitas laser / TIG glutino
Materia test libellum (MTC) inclusa cum omni FH® bracket

Cur Elige FH® Support Brackets?
1. Fundamentum tutum Stacking
Male disposito vel infirma uncis causa;

Distributio iniquo onus - tipping aut collapse canistro
Pars damnum de canistris cadens
Fornax refractarium damnum de fluens onerat
Operans salutem pericula

FH® firmamentum brackets are engineered for firm and safety.

2. Materia Electio Libri

Material	Max Temp	optimus For
Carbon chalybe	450°C	Temperatio humilis-sensitiva, cost-sensitiva
310S	950°C	Obduratio generalis, carburizing
1.4806	1000°C	Superior temperatus furnum
1.4849	1100°C	Onera gravia, circuitus longi
Inconel	1150°C	extremae temperaturis

3. Design Options

Type	optimus For	Clavis Feature
Certa altitudo	Latin positis	Simplex, fortis, sumptus efficens
Product	Altitudo onus variabilis	Pin vel stupra commensurationem
plicatura	Repono cum in usu	CARDINATUS pedes, salutaris spatium
Modular	Configurationes multae	Convertere extensiones

Applications

1. Support pro acervos canistris in arca fornacibus

2. Iacuit separationem in fovea / fornacibus bene type

3. imo surgunt ad gas circulationem sub emuncta

4. Spacers inter partem stratis

5. Support in tempore vel Inconcinnus partes

6. Omnia fornax genera: arca, fovea, fundum currus, bell

Materia Grade Tabula:

Calor repugnans Ferro
/	GB	DIN	ASTM	JIS	Chemical Compositio (%)								Maximum Operatio Temperature
/	GB	DIN	ASTM	JIS	C	Si	Mn	Cr	Ni	Nb/Cb	Mo	Other	Maximum Operatio Temperature
1	ZG40Cr27Ni4	1.4823	HD	SCH11	0.30 - 0.50	≤2.00	≤1.00	24.00 - 28.00	4.00 - 6.00	-	≤0.50	-	1050℃
2	ZG40Cr22Ni10	1.4826	HF	SCH12	0.30 - 0.50	1.00 - 2.50	≤2.00	19.00 - 23.00	8.00 - 12.00	-	≤0.50	-	950℃
3	ZG30Cr28Ni10	-	ILLE'	SCH17	0.20 - 0.50	≤2.00	≤2.00	26.00 - 30.00	8.00 - 11.00	-	-	-	1050℃
4	ZG40Cr25Ni12	1.4837	HH	SCH13	0.30 - 0.50	1.00 - 2.50	≤2.00	24.00 - 27.00	11.00 - 14.00	-	≤0.50	-	1050℃
5	ZG30Cr28Ni16	-	HI*	SCH18	0.20 - 0.50	≤2.00	≤2.00	26.00 - 30.00	14.00 - 18.00	-	-	-	1100℃
6	ZG40Cr25Ni20Si2	1.4848	HK	SCH21	0.30 - 0.50	≤1.75	≤1.50	23.00 - 27.00	19.00 - 22.00	-	≤0.50	-	1100℃
7	ZG30Cr20Ni25	-	HN	SCH19	0.20 - 0.50	≤2.00	≤2.00	19.00 - 23.00	23.00 - 27.00	-	-	-	1100℃
8	ZG40Cr19Ni39	1.4865	HU	SCH20	0.35 - 0.75	≤2.50	≤2.00	17.00 - 21.00	37.00 - 41.00	-	-	-	1020℃
9	ZG40Cr15Ni35	1.4806	HT	SCH15	0.35 - 0.70	≤2.00	≤2.00	15.00 - 19.00	33.00 - 37.00	-	≤0.50	-	1000℃
10	ZG40Cr25Ni35Nb	1.4852	HPCb	SCH24Nb	0.30 - 0.50	≤2.00	≤2.00	24.00 - 28.00	33.00 - 37.00	0.80 - 1.80	≤0.50	-	1100℃
11	ZG40Cr19Ni39Nb	1.4849	-	-	0.30 - 0.50	1.00 - 2.50	≤2.00	18.00 - 21.00	36.00 - 39.00	1.20- 1.80	≤0.50	-	1100℃
12	ZG40Cr24Ni24Nb	1.4855	-	-	0.30 - 0.50	1.00 - 2.50	≤2.00	23.00 - 25.00	23.00 - 25.00	0.80 - 1.80	≤0.50	-	1050℃
13	ZG40Cr25Ni35	1.4857	HP	SCH24	0.35 - 0.50	1.00 - 2.50	≤2.00	24.00 - 28.00	33.00 - 37.00	-	≤0.50	-	1100℃
14	ZG1Cr20Ni32Nb	1.4859	-	-	0.06 - 0.15	0.50 - 1.50	≤2.00	19.00 - 21.00	31.00 - 33.00	0.50 - 1.50	≤0.50	-	1050℃
15	ZG45Cr12Ni60	-	HW	-	0.35 - 0.75	≤2.00	≤2.00	10.00 - 14.00	58.00 - 62.00	-	-	-	1100℃
16	ZG45Cr18Ni66	-	HX	-	0.35 - 0.75	≤2.00	≤2.00	15.00 - 19.00	64.00 - 68.00	-	-	-	1100℃
17	ZG1Cr28Co50	2.4778	-	-	0.05 - 0.25	0.50 - 1.00	≤1.50	27.00 - 30.00	≤1.00	≤0.50	≤0.50	Co:48.0 - 52.0	1200℃
18	ZG30Cr28Co50Nb	2.4779	-	-	0.25 - 0.35	0.50 - 1.50	0.50 - 1.50	27.00 - 29.00	-	1.50 - 2.50	≤0.50	Co:48.0 - 52.0	1200℃
19	ZG40Cr28Ni48W5	2.4879	-	SCH42	0.35 - 0.55	1.00 - 2.00	≤1.50	27.00 - 30.00	47.00 - 50.00	-	≤0.50	W:4.0 - 5.5	1200℃

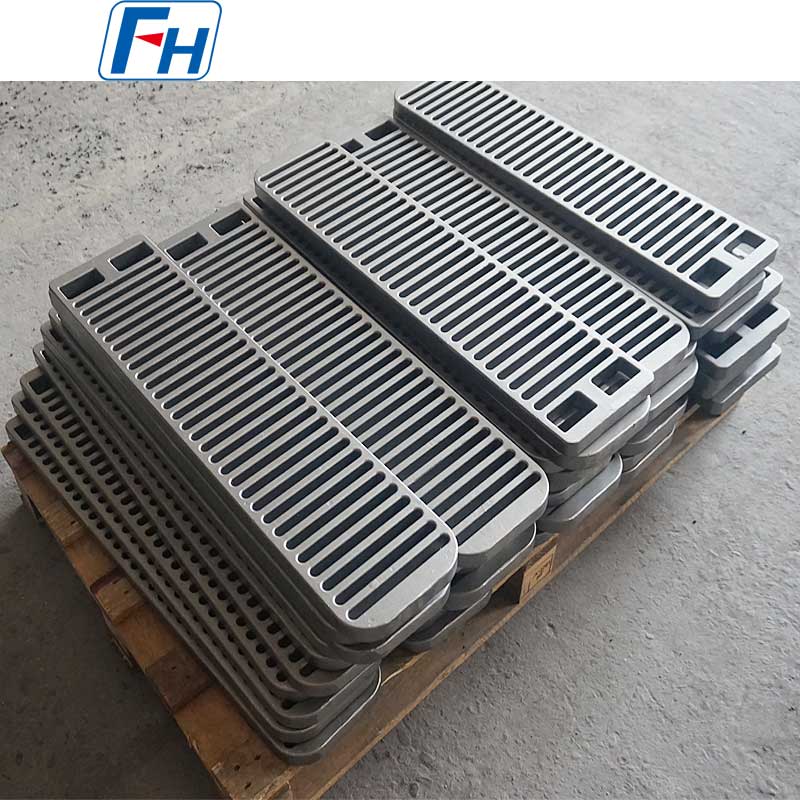

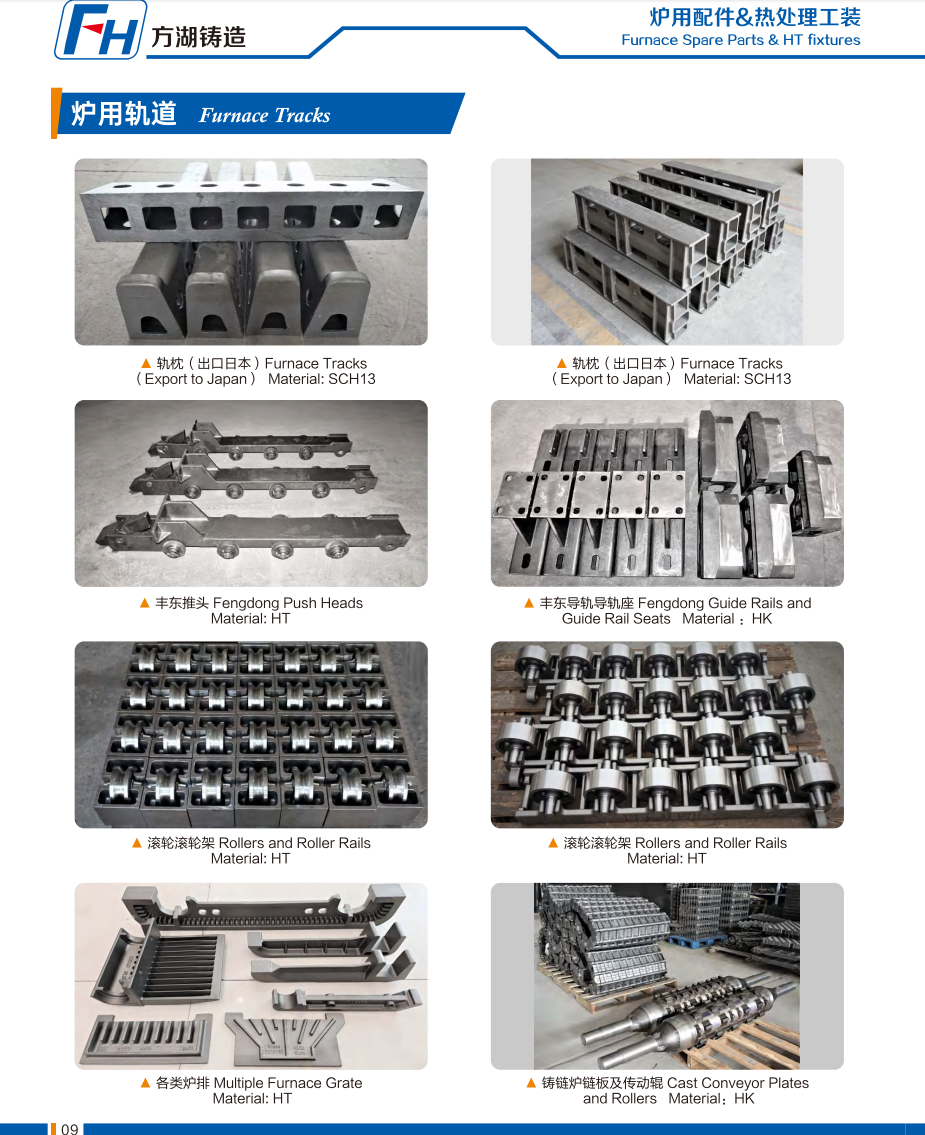

Genuina Photos of FH® Caloris Curatio Fixtures

Processus ordinans

Providere requiri altitudinem, latitudinem, et onus facultatem
Specificare operating temperatus et atmosphaera
FH® materiam et design
Productio: 7-15 opus diebus
Partus includit MTC et inspectionem fama

FAQ:
Q1: Quam materiam commendes auxilium uncis?
A: ≤700°C: 310S. Pro 950°C carburizing: 1.4849. Pro >1000°C: Inconel. Carbon ferrum praesto est ad applicationes temperaturas tantum (≤450°C).

Q2: Potesne facere brackets ad certam altitudinem?
A: Ita – altitudo quaelibet ab 50 mm ad 500 mm. Etiam consilia aptabilia praebemus pro necessitatibus positis variabilibus.

Q3: Quantum pondus bracket firmamentum?
A: Standard designationes 100-500 kg per bracket support. Gravis officium versiones ad 2000 kg per bracket sustinent. Dic nobis postulationem tuam onus.

Q4: Do brackets come in sets?
A: Immo - typically 4 brackets per layer (one per corner). Consuetudo quantitatis in promptu est.

Q5: Quod est opus tuum warantizatio?
A: 12 menses contra vitia fabricanda. Normalis vestis, repit, et scelerisque lassitudo non tegitur.
