FH® 1.4849 Caloris Treatment Basket | Machinatum pro Multi-camerario Fornacis (Signatum exstinguere / Carburizing)
Key Beneficia
- Sincerus 1.4849 (X15CrNiSi25-21)
Superior nickel, chromium, et contentum silicon 310S - oxidationis eximiae resistentiae et vires in atmosphaeras carburizing serpunt. - Anti-Carburizing Design
Optimized mixtura compositio carbonis penetrationem et metallum adspersatio minuit - integritatem structuram conservat per centenos cyclos. - Creep repugnans Structure
FEA-optimized layout costarum et angulis aucti - minimal deflectens vel depravatio sub oneribus 950-1050°C. - Concursores scelerisque Repugnans
Resistentibus olei cyclis sine crepitu exstinguitur - designatus ad fornacem exstinguiendam (SQF) operarum. - Custom Sizes & configurations
Unius vel multi-circulis, positis vel nidificans - ad fornacem tuam elogium ac partem geometriae destinato.
Technical Specifications
| Parameter | Precium |
| Materia | 1.4849 (X15CrNiSi25-21) — certified |
| Maximilianus. continuus temp. | 1050°C |
| Breve tempus apicem temp. | 1100°C |
| Superficiem curatio | As-cast / as iuncta pre-oxidized |
| Maximilianus. onus | Usque ad D kg (dependens consilio) |
| Fabricatio | Subtilitas investment mittentes aut laser / TIG glutino |
| Standard size (L×W×H) | 600×600×H mm (consuetudo available) |
| Expectata servitium vitae | 300-500 carburizing cycles (per propriis sustentationem) |
| Materia test certificate (MTC) included with every FH® heat treatment baskets | |
Cur Elige FH® 1.4849 Caloris Treatment Baskets?
1. Designed for Multi-Chamber fornax postulata
Fornaces multi-camerarii (signati, extinguendi, carburisandi, carbonitridis) graves scelerisque et chemicas accentus imponunt - calefactio repetita ad 950°C, exstinguentis oleum, atmosphaerarum carbonio-dives plus infestantibus. FH® 1.4849 Calathum tractandi calathos speciatim formatas et structas superesse his conditionibus.
2. Superior ad 310S/ 314 .
| Property | 310S | 1.4849 | Cultura |
| Robur in M°C | Baseline | 40% | Superius |
| Repugnantia oxidatio | bonum | Praeclarus | Diutius vita |
| Anti-carburization | Moderatus | Summus | Minus ipsum uptake |
| Typical vita exolvuntur | 150-200 | 300-500 | 2X diutius |
3. Weld & Mittite Qualitas potes credere
- Tractatus dejectio: superficies laeves nulla accentus acuta surgunt
- Hybrid laser-TIG welding;
- C% visual et dimensiva inspectionem ante amet
4. Realistica, Honesta Guidance
Non promittimus "in aeternum." Praedictio, iterabilis perficientur cum sustentatione propria promittimus - sumptus et inferiores per cyclum quam alterutrius gradus inferiores.
Applications
- Signati fornacem exstinguere (SQF)
- Batch carburizing lineas
- Carbonitriding
- Tutela atmosphaera obduratio
- Partes: anni, spicula, gestus, annulos, fasteners, autocinetum tradendae partes
Materia Grade Tabula:
| Calor repugnans Ferro | |||||||||||||
| / | GB | DIN | ASTM | JIS | Chemical Compositio (%) | Maximum Operatio Temperature | |||||||
| C | Si | Mn | Cr | Ni | Nb/Cb | Mo | Other | ||||||
| 1 | ZG40Cr27Ni4 | 1.4823 | HD | SCH11 | 0.30 - 0.50 | ≤2.00 | ≤1.00 | 24.00 - 28.00 | 4.00 - 6.00 | - | ≤0.50 | - | 1050℃ |
| 2 | ZG40Cr22Ni10 | 1.4826 | HF | SCH12 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 19.00 - 23.00 | 8.00 - 12.00 | - | ≤0.50 | - | 950℃ |
| 3 | ZG30Cr28Ni10 | - | ILLE' | SCH17 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 8.00 - 11.00 | - | - | - | 1050℃ |
| 4 | ZG40Cr25Ni12 | 1.4837 | HH | SCH13 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 27.00 | 11.00 - 14.00 | - | ≤0.50 | - | 1050℃ |
| 5 | ZG30Cr28Ni16 | - | HI* | SCH18 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 14.00 - 18.00 | - | - | - | 1100℃ |
| 6 | ZG40Cr25Ni20Si2 | 1.4848 | HK | SCH21 | 0.30 - 0.50 | ≤1.75 | ≤1.50 | 23.00 - 27.00 | 19.00 - 22.00 | - | ≤0.50 | - | 1100℃ |
| 7 | ZG30Cr20Ni25 | - | HN | SCH19 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 19.00 - 23.00 | 23.00 - 27.00 | - | - | - | 1100℃ |
| 8 | ZG40Cr19Ni39 | 1.4865 | HU | SCH20 | 0.35 - 0.75 | ≤2.50 | ≤2.00 | 17.00 - 21.00 | 37.00 - 41.00 | - | - | - | 1020℃ |
| 9 | ZG40Cr15Ni35 | 1.4806 | HT | SCH15 | 0.35 - 0.70 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1000℃ |
| 10 | ZG40Cr25Ni35Nb | 1.4852 | HPCb | SCH24Nb | 0.30 - 0.50 | ≤2.00 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | 0.80 - 1.80 | ≤0.50 | - | 1100℃ |
| 11 | ZG40Cr19Ni39Nb | 1.4849 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 18.00 - 21.00 | 36.00 - 39.00 | 1.20- 1.80 | ≤0.50 | - | 1100℃ |
| 12 | ZG40Cr24Ni24Nb | 1.4855 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 23.00 - 25.00 | 23.00 - 25.00 | 0.80 - 1.80 | ≤0.50 | - | 1050℃ |
| 13 | ZG40Cr25Ni35 | 1.4857 | HP | SCH24 | 0.35 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1100℃ |
| 14 | ZG1Cr20Ni32Nb | 1.4859 | - | - | 0.06 - 0.15 | 0.50 - 1.50 | ≤2.00 | 19.00 - 21.00 | 31.00 - 33.00 | 0.50 - 1.50 | ≤0.50 | - | 1050℃ |
| 15 | ZG45Cr12Ni60 | - | HW | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 10.00 - 14.00 | 58.00 - 62.00 | - | - | - | 1100℃ |
| 16 | ZG45Cr18Ni66 | - | HX | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 64.00 - 68.00 | - | - | - | 1100℃ |
| 17 | ZG1Cr28Co50 | 2.4778 | - | - | 0.05 - 0.25 | 0.50 - 1.00 | ≤1.50 | 27.00 - 30.00 | ≤1.00 | ≤0.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 18 | ZG30Cr28Co50Nb | 2.4779 | - | - | 0.25 - 0.35 | 0.50 - 1.50 | 0.50 - 1.50 | 27.00 - 29.00 | - | 1.50 - 2.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 19 | ZG40Cr28Ni48W5 | 2.4879 | - | SCH42 | 0.35 - 0.55 | 1.00 - 2.00 | ≤1.50 | 27.00 - 30.00 | 47.00 - 50.00 | - | ≤0.50 | W:4.0 - 5.5 | 1200℃ |

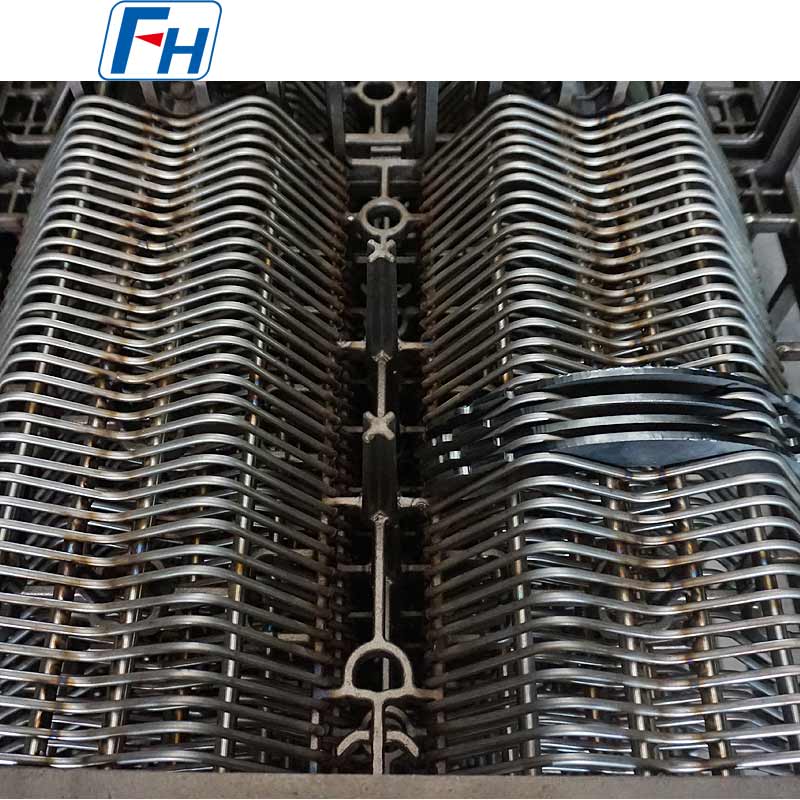

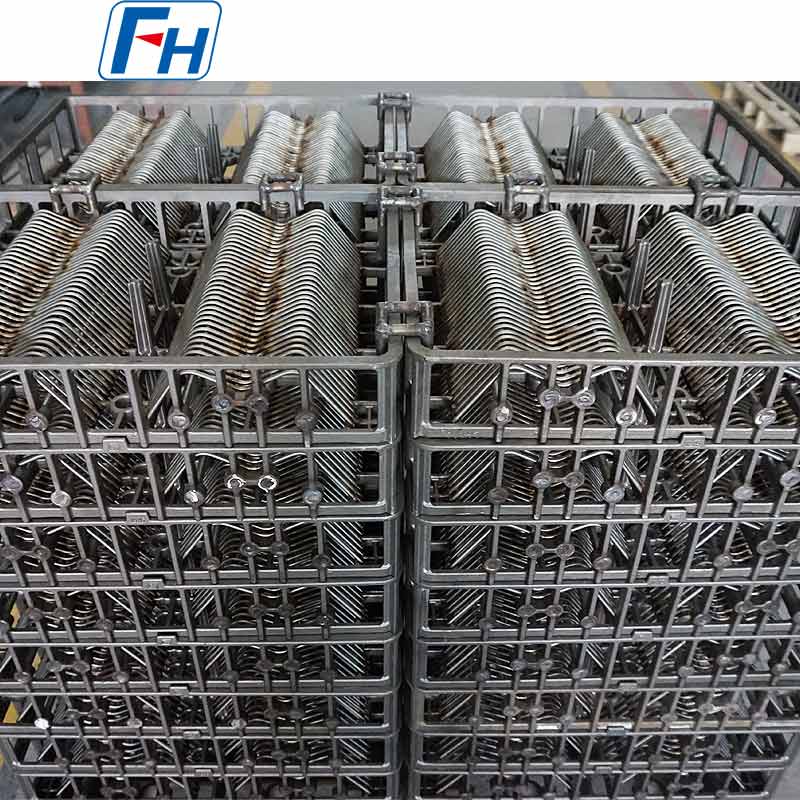

Genuina Photos of FH® Caloris Treatment Baskets
Processus ordinans
- Provide fornacem ID, dimensiones partim, et massam vulgare pondus
- FH® turma 3D layout et onus calculos proponit
- Adfirmare efficiens (vexillum vel anti-baculus)
- Productio: 10-15 operantes dies pro consuetudine magnitudinis
- Partus includit MTC, inspectiones photographicas, et primi usus dux
FAQ:
Q1: Quamdiu caloris curatio FH® 1.4849 calathum durat in fornace multi- cubiculi carburizing?
A: Typice 300-500 circuitus ad propriam sustentationem (regulariter purgatio, nullo obruitur). Haec fere 2x vita 310S sporta sub iisdem conditionibus est. Actualis vita ab operante temperie, atmosphaera, severitate exstingui, ac pondere oneris pendet.
Q2: Quomodo me mundam et aestus curationis calathum teneo?
A: Grana levis uredine (gracula vitri, ≤0.3 MPa) omnes 50-80 cyclos ad removendum carbonis fuliginem et laxo. Ad gravem carbonis aedificationem, uti cycli combustionis continentis (800°C in aere) consecuti sunt uredine levi. Perterget vel gravi stridore non utuntur carbonis chalybe.
Q3: Num calor curatio canistrum stamine vel dicent ad 950-1050°C?
A: Minimal. FH® 1.4849 sportae plumae FEA-optimized costae et fauces. Typical deformatio serpere est <3 mm per 500 mm longitudo post 300 cyclos. Onerare, superans 1050°C, vel impulsus thermas celeri extra normales extinctiones accelerabit inflexionem.
Q4: Tu praebes consuetudinis magnitudinis pro mea speciei multi- cubiculi fornacis?
A: Ita. FH® specialitas in cophinis mos. Mitte nobis fornacem tuam extractionem (vel metiri possumus agri), imagines partim, et singula cycli. Simulationem CAD trahentem et onerantem ante productionem praebebimus.
Q5: Quid est warantiam tuam et tu praebes testimoniales materiales?
A: 12 menses contra vitia fabricanda (rimas fundentes, vitia materialia fundentes). Normalis superficies carburizationis, gradatim serpunt, et thermae lassitudo censentur indumentum – non opertum. Omnis canistrum venit cum 1.4849 molendini test libellum (MTC).
