FH® 1.4849 Bene-genus fornacis Fixture System
Key Beneficia
- Sincerus 1.4849 (X15CrNiSi25-21)
Superior nickel, chromium, et silicium contentum quam 310S - eximiae vires subrepunt et anti-carburizationis in temperaturis usque ad 1050°C. - Complete Systema SOLUTIO
Basis lance intermedia cophini summitas eget - ut ratio integrata constituitur stabilis positio gasi et optimalis fluxus. - Gravis-Load supportantes
Costae structurae firmatae et fulcientes pedes pondus aequaliter distribuunt — altas acervos partium sustinet vel sportas multiplices sine medio deflectens. - Anti-Carburization euismod
Silicon contentum altum (1.5-2.5%) efficit claustrum SiO₂ contra carbonis penetrationem – vitam servitutem in ditibus atmosphaerae carburizing extendit. - Gas Circulation Optimized
Pedes erecti in basi lance patente exemplaria requirendi permittunt gas calidum calidum circa omnes superficies fluere - uniformis calefactio ab imo ad summum. - Consuetudo configurationis
Circularis vel rectangula - praecise matched cum diametro interna camino tuo. Segment bene magna diam.
Technical Specifications
| Parameter | Precium |
| Materia | 1.4849 (X15CrNiSi25-21) — certified |
| Maximilianus. continuus temp. | 1050°C |
| Breve tempus apicem temp. | 1100°C |
| Maximilianus. summa onus | 500 - 2000 kg (dependens consilium) |
| Fabricatio | Subtilitas laser / TIG welding or investment ajection |
| Figura | Circularis (vexillum) seu rectangulum |
| Vexillum diametri | 600 mm, 800 mm, 1000 mm, 1200 mm. |
| Expectata servitium vitae | 400 - 600 carburizing circuitus |
| Materia test certificate (MTC) weld/cast inspection report included with every FH® system | |
Cur elige FH® 1.4849 Bene-typus Fornacis fixtures?
1. 1.4849
| Property | 310S | 1.4849 | Commodum |
| Robur in M°C | Baseline | 40% | Minus deflectens |
| Anti-carburization | Moderatus | Summus | Diues in atmosphaera iam vita |
| Repugnantia oxidatio | bonum | Praeclarus | Minus scalis |
| Scelerisque lassitudine resistentia | bonum | Superior | Pauciores rimis |
| Typical vita exolvuntur | 150-250 | 400-600 | 400-600 |
2. Systema Universa - Lorem opus Together
| Component | Munus | Clavis Feature |
| Basis lance | Fundamentum, gas fluxus | Pedes erecti, costas aucti |
| Stacking baskets | Pars continentiae | Aperta eget, margines laeves |
| Top malesuada euismod | Secure summo accumsan | Pondus retentio, anti-tip |
3. Anti-Carburization Technology
In fornacibus bene speciebus carburizing, carbo carbonis adfixa ordinaria penetrat et emollit. FH® 1.4849 pluma adfixa:
- Summus Pii content - forms firmum SiO₂ obice
- Pre-oxidatio curatio - Cr₂O tutela gignit accumsan
- Superficiem densam metam - reduces ipsum adhaesionem
4. Designed for Bene-genus fornacis provocationes
| Provocatio | FH® Solution |
| Gravis acervos (2-3 metra alta) | Roborati costas altum serpunt viribus alloy |
| Imo iacuit inaequale calefactio | Pedes aperto euismod exemplaria erexit |
| Difficilis summo aditum remotionem | Segment optiones pro magnis diametris |
| Scelerisque cursus lacus | Anguli rotundi accentus-welds elevetur |
Applications
- Bene-genus / fovea carburizing fornacibus
- Bene-genus carbonitriding fornacibus
- Bene type furnum (caliditas)
- Bene-genus caecitatem fornacibus
- Partes: magni anni, spicula, annuli, dies, instrumentum, iactus gravis, fistulae longae
Materia Grade Tabula:
| Calor repugnans Ferro | |||||||||||||
| / | GB | DIN | ASTM | JIS | Chemical Compositio (%) | Maximum Operatio Temperature | |||||||
| C | Si | Mn | Cr | Ni | Nb/Cb | Mo | Other | ||||||
| 1 | ZG40Cr27Ni4 | 1.4823 | HD | SCH11 | 0.30 - 0.50 | ≤2.00 | ≤1.00 | 24.00 - 28.00 | 4.00 - 6.00 | - | ≤0.50 | - | 1050℃ |
| 2 | ZG40Cr22Ni10 | 1.4826 | HF | SCH12 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 19.00 - 23.00 | 8.00 - 12.00 | - | ≤0.50 | - | 950℃ |
| 3 | ZG30Cr28Ni10 | - | ILLE' | SCH17 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 8.00 - 11.00 | - | - | - | 1050℃ |
| 4 | ZG40Cr25Ni12 | 1.4837 | HH | SCH13 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 27.00 | 11.00 - 14.00 | - | ≤0.50 | - | 1050℃ |
| 5 | ZG30Cr28Ni16 | - | HI* | SCH18 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 14.00 - 18.00 | - | - | - | 1100℃ |
| 6 | ZG40Cr25Ni20Si2 | 1.4848 | HK | SCH21 | 0.30 - 0.50 | ≤1.75 | ≤1.50 | 23.00 - 27.00 | 19.00 - 22.00 | - | ≤0.50 | - | 1100℃ |
| 7 | ZG30Cr20Ni25 | - | HN | SCH19 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 19.00 - 23.00 | 23.00 - 27.00 | - | - | - | 1100℃ |
| 8 | ZG40Cr19Ni39 | 1.4865 | HU | SCH20 | 0.35 - 0.75 | ≤2.50 | ≤2.00 | 17.00 - 21.00 | 37.00 - 41.00 | - | - | - | 1020℃ |
| 9 | ZG40Cr15Ni35 | 1.4806 | HT | SCH15 | 0.35 - 0.70 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1000℃ |
| 10 | ZG40Cr25Ni35Nb | 1.4852 | HPCb | SCH24Nb | 0.30 - 0.50 | ≤2.00 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | 0.80 - 1.80 | ≤0.50 | - | 1100℃ |
| 11 | ZG40Cr19Ni39Nb | 1.4849 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 18.00 - 21.00 | 36.00 - 39.00 | 1.20- 1.80 | ≤0.50 | - | 1100℃ |
| 12 | ZG40Cr24Ni24Nb | 1.4855 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 23.00 - 25.00 | 23.00 - 25.00 | 0.80 - 1.80 | ≤0.50 | - | 1050℃ |
| 13 | ZG40Cr25Ni35 | 1.4857 | HP | SCH24 | 0.35 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1100℃ |
| 14 | ZG1Cr20Ni32Nb | 1.4859 | - | - | 0.06 - 0.15 | 0.50 - 1.50 | ≤2.00 | 19.00 - 21.00 | 31.00 - 33.00 | 0.50 - 1.50 | ≤0.50 | - | 1050℃ |
| 15 | ZG45Cr12Ni60 | - | HW | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 10.00 - 14.00 | 58.00 - 62.00 | - | - | - | 1100℃ |
| 16 | ZG45Cr18Ni66 | - | HX | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 64.00 - 68.00 | - | - | - | 1100℃ |
| 17 | ZG1Cr28Co50 | 2.4778 | - | - | 0.05 - 0.25 | 0.50 - 1.00 | ≤1.50 | 27.00 - 30.00 | ≤1.00 | ≤0.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 18 | ZG30Cr28Co50Nb | 2.4779 | - | - | 0.25 - 0.35 | 0.50 - 1.50 | 0.50 - 1.50 | 27.00 - 29.00 | - | 1.50 - 2.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 19 | ZG40Cr28Ni48W5 | 2.4879 | - | SCH42 | 0.35 - 0.55 | 1.00 - 2.00 | ≤1.50 | 27.00 - 30.00 | 47.00 - 50.00 | - | ≤0.50 | W:4.0 - 5.5 | 1200℃ |

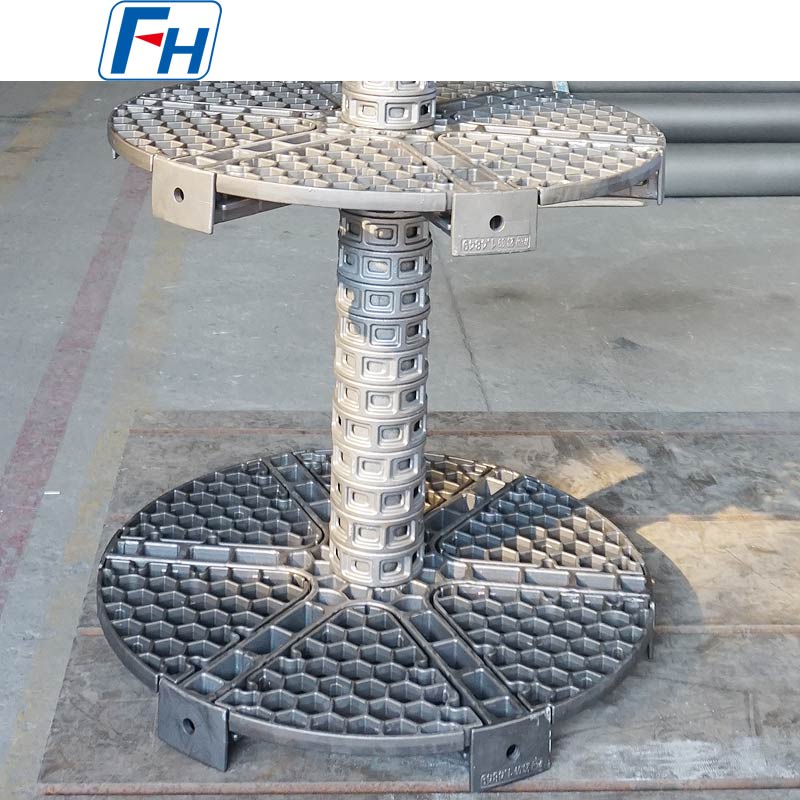

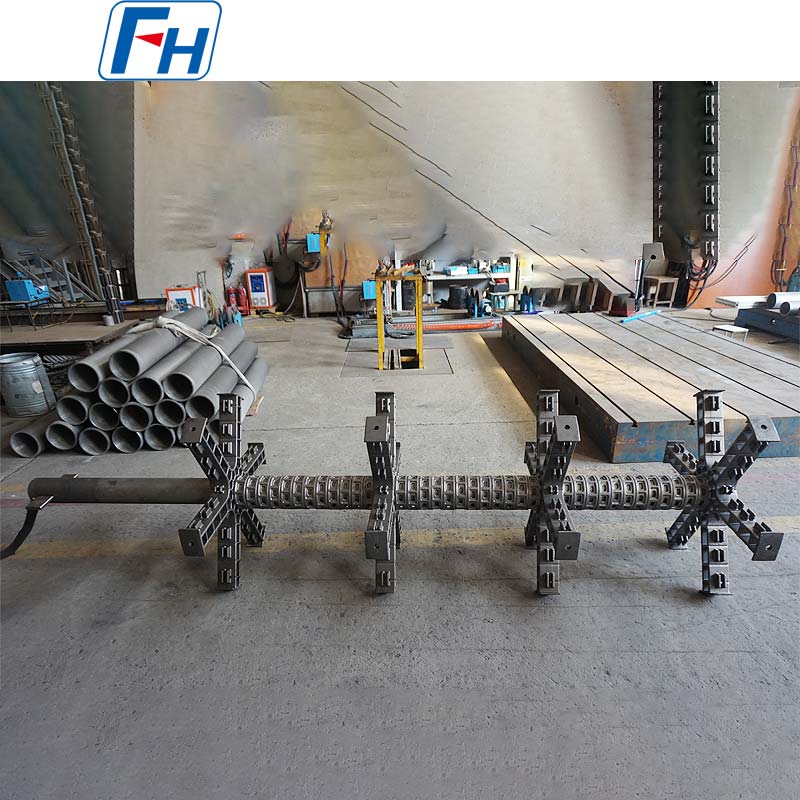

Genuina Photos of FH® Caloris Curatio Fixtures
Processus ordinans
- Praebent fornacem diametri internam (vel L×W), profunditatem et methodum accessum
- Partis dimensiones, max pondus per massam, et temperatura operantem
- Specificare atmosphaeram (carburizing, carbonitriding, furnum, etc.)
- FH® fabrum proponunt integram rationem design 3D layout
- Adfirmare quantitates componentes (una basi lance numerus cophinorum)
- Productio: 15-25 dies working
- Partus includit: MTC, notitiae inspectionis, tabula positis, cura rector
FAQ:
Q1: Quid elige 1.4849 super 310S pro meo puteo-typo carburizing fornacem?
A: 1.4849 offert signanter altiores vires subrepentes et meliores anti-carburizationem quam 310S. Ad 930°C cum oneribus gravissimis, 310S fixtura incipiet deflectens post 150-200 cyclos, dum 1.4849 typice 400-600 cyclos durat. Superior initialis sumptus per 2x longiorem vitam et pauciores interpellationes productionis consistit. Vitacycli sumptus analysis pro certis conditionibus tuis praebere possumus.
Q2: Quid in FH® 1.4849 inclusum est bene typus fornax fixture systematis?
A: Ratio vexillum includit:
I basi lance - pedes elevatis ad gas circulationem roboratus
Plures canistris positis (quantitas ex profunditate fornacis) - eget apertum consilium
I summo eget - tutatur summo accumsan
Partes omnes ex certificato 1.4849 fiunt et ad stabiliter iunguntur.
Q3: Quomodo me mundam et 1.4849 fixturas teneo?
A: Omnis 80-120 circuitus, fixtures remove in shutdown et leviter globuli flatus ( globuli vitrei , ≤0.3 MPa ) ut carbonis fuliginem et laxo removeat. Reprime basim lance planitiam – si sag 5 mm per 1000 mm excedit, considera repositum. Noli malleo neque æstus corrige. Fuge usura carbo chalybe perterget.
Q4: Fornax mea bene typus est 1300 mm diametri. Potesne lancem unam basim facere?
A: Pro diametris super 1000 mm, commendamus lances basi divisas (3-4 fragmentis interlocking). Segmenta faciliora sunt per foramen cacumen installare sine fornace intrans. Etiam scelerisque expansionem accommodare meliore. Una pars fieri potest si fornax tua in latere aut in fundo aditum habeat - placet confirmare.
Q5: Potestne 1.4849 fixtures adhiberi in fornacem nitriding gas bene typus?
A: Ita, 1.4849 bene facit in nitriding gas (500-580°C). Attamen ad nitriding solum (non carburizing) 310S saepe sufficiens et magis sumptus efficens. Si in eodem fornace et nitridinge et carburiando curris, 1.4849 mobilitati suae potior est. Omnes fixtures chalybis immaculatae explicabunt superficiem nitridorum stratorum - omnes orbes 50-80 mundatos.
Q6: Quomodo statuo quot cophinos positis egeo?
A: Fundatur in fornacem tuam profunditatem et partem altitudinis. Exempli gratia: Fornax profunditas = 1800 mm, alveoli basi altitudo = 150 mm, calathus uterque = 250 mm longus. Altitudo utilis = 1800 – 150 – 100 (alvi) = 1550 mm → 6 corbes (6 250 = 1500 mm). FH® hoc tibi in designatione Phase computabit.
Q7: Tu parce partes praebes vel officia reparas?
A: Ita. Com- tium hahemus. Pro corbis quassatis, reparationem firmam offerimus (si damnum locatum est) vel repositum. Scutra turpia de more reponuntur potius quam reparantur ob partes criticas. Contact us cum imaginibus pro taxatione reparatione.
Q8: Quid est warantiam tuam et tu praebes testimoniales materiales?
A: 12 menses contra defectus fabricandi (rimas pugillares, mendas mittentes, defectus materiales). Normales serpunt, superficies carburizationis, et gradatim deflectens considerantur normalis indumentum – non opertum. Omnis fixtura venit cum 1.4849 materia test libellum (MTC) et pugillo/cast famam inspectionem.
