FH® Welded Fan Blades & Impellers | Summus Temperature Fornax Circulation
Key Beneficia
- Subtilitas Laser Welding
Hybrid laser TIG processus glutino - minimus calor initus, penetratio plena, et immundus summae liberorum quae resistunt scelerisque lassitudine crepuit. - Summus Temperatus Fortitudo
Admixtionum resistentiarum fabricata - ferrum geometriae et integritatem structuralem conservat in fornace temperaturas operating usque ad 1150°C. - Dynamic Librans
Quisque impulsor dynamice libratus ante amet (ISO 1940 G6.3 vel melius) – vibrationem minuit, vitam sustinens extendit, et operationem quietam efficit. - More Blade Profiles
Radialis, retrorsum-curvus, ante-curvus, seu fluxus axialis — destinatus pro certis airfluis et pressionibus requisitis. - Constructio confragosa
Lamina roborata ad centrum attachiamenta et subsidia accentus adiuvat - revolutio scelerisque resistit et vires centrifugae altae.
Technical Specifications
| Parameter | Precium |
| Materiae | 310S, 1.4828, 1.4849, Inconel 600/625, Hastelloy |
| Maximilianus. continuus temp. | 650°C – 1150°C (prout materialis) |
| Genera ferrum | Radialis, retrorsum-curvis, antro-curvis, axialis |
| Hub types | Keyed, acuminati, scissilis, vel consuetudo borealis |
| Diam range | 200 mm - 1500 mm |
| Maximilianus. tip celeritas | Usque ad 100 m/s (dependens consilio) |
| librans gradus | ISO 1940 G6.3 vexillum (G2.5 available) |
| vexillum welding | EN ISO 5817 / AWS D1.1 |
| Superficiem finiendam Vt iuncta / iaculata / alta temp coating | |
Cur Elige FH® iuncta Fan Blades?
1. Partes Criticae de Circulationis Fans
In calore fornacibus curatio, cor circulatio fans caliditatis uniformitas. Male fictis ventilabrum scapulis;
- Partum vibrationis damna gestus et motricium aggeris
- Generare inaequale airflow - temperatura variationes per onus
- Crack at welds - defectum calamitosas fieri
- Deformare ad temperatus - reducitur efficientiam et industriam augendam consummatio
FH® iuncta impulsores solve has difficultates.
2. Materia Electio Libri
| Material | Max Temp | optimus For |
| 310S | 950°C | Temperatio, humilis-temptus carburizing, circulatio generalis |
| 1.4828 | 1000°C | Superior temperatus furnum, resistentia oxidationis bona |
| 1.4849 | 1050°C | Summus temp carburizing, gravi officio circulationem |
| Inconel 600 | 1100°C | Gravis scelerisque cycling, mordax atmosphaerae |
| Inconel 625 | 1150°C | Extremae temperaturae, summa fortitudo requisita |
3. Vestibulum Processusus
| Gradus | Process |
| 1 | Mucrone profile laser-cut ex certified laminam |
| 2 | Hub machined ut mos hastile specificationem |
| 3 | Laminae positae in certa glutino fixture |
| 4 | Laser/TIG welding - minimal pravitatis, non inquinatus |
| 5 | Post-pullum accentus subsidio (requiritur ad summus temp muneris) |
| 6 | Librans aspera - materia praeter / remotionem |
| 7 | Dynamic conparatio – ISO 1940 G6.3 minimum |
| 8 | Finalis inspectionis dimensiva et superficies consummatio |
Genera Available ferrum
| Type | Airflow Pattern | optimus For |
| Radialis (recta) | Princeps pressura, modicus fluxus | Summus static pressio applicationes, onera densa |
| Retro-curvis | Altum fluxum, bonum efficientiam | General circulatio, industria efficientia |
| Deinceps-curvis | Princeps fluxus ad humilis celeritate | Minimum celeritate, summus volumen applicationes |
| Axial (propeller) | Princeps fluxus, pressura humilis | Per fornaces fluunt, refrigeratio fans |
Applications
Fornacis Genera:
- Arca fornax tectum circulatio fans
- Fovea fornax recirculation fans
- Car fundo fornacem fans
- Fornax campana circulatio
- Fornax continua crucis-fluxus fans
- Temperans fornacem circulationem
- Annening fornacem fans
- Sintering fornacem fans
- Siccatio clibano circulatio
Industria:
- Curatio caloris tabernae
- Automotive partes vestibulum
- Aerospace tractans calor
- Cudebat et liquatur
- Ferro et aluminium processus
- Ceramic et vitrum laterum
- Processus chemica fornaces
Materia Grade Tabula:
| Calor repugnans Ferro | |||||||||||||
| / | GB | DIN | ASTM | JIS | Chemical Compositio (%) | Maximum Operatio Temperature | |||||||
| C | Si | Mn | Cr | Ni | Nb/Cb | Mo | Other | ||||||
| 1 | ZG40Cr27Ni4 | 1.4823 | HD | SCH11 | 0.30 - 0.50 | ≤2.00 | ≤1.00 | 24.00 - 28.00 | 4.00 - 6.00 | - | ≤0.50 | - | 1050℃ |
| 2 | ZG40Cr22Ni10 | 1.4826 | HF | SCH12 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 19.00 - 23.00 | 8.00 - 12.00 | - | ≤0.50 | - | 950℃ |
| 3 | ZG30Cr28Ni10 | - | ILLE' | SCH17 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 8.00 - 11.00 | - | - | - | 1050℃ |
| 4 | ZG40Cr25Ni12 | 1.4837 | HH | SCH13 | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 27.00 | 11.00 - 14.00 | - | ≤0.50 | - | 1050℃ |
| 5 | ZG30Cr28Ni16 | - | HI* | SCH18 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 26.00 - 30.00 | 14.00 - 18.00 | - | - | - | 1100℃ |
| 6 | ZG40Cr25Ni20Si2 | 1.4848 | HK | SCH21 | 0.30 - 0.50 | ≤1.75 | ≤1.50 | 23.00 - 27.00 | 19.00 - 22.00 | - | ≤0.50 | - | 1100℃ |
| 7 | ZG30Cr20Ni25 | - | HN | SCH19 | 0.20 - 0.50 | ≤2.00 | ≤2.00 | 19.00 - 23.00 | 23.00 - 27.00 | - | - | - | 1100℃ |
| 8 | ZG40Cr19Ni39 | 1.4865 | HU | SCH20 | 0.35 - 0.75 | ≤2.50 | ≤2.00 | 17.00 - 21.00 | 37.00 - 41.00 | - | - | - | 1020℃ |
| 9 | ZG40Cr15Ni35 | 1.4806 | HT | SCH15 | 0.35 - 0.70 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1000℃ |
| 10 | ZG40Cr25Ni35Nb | 1.4852 | HPCb | SCH24Nb | 0.30 - 0.50 | ≤2.00 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | 0.80 - 1.80 | ≤0.50 | - | 1100℃ |
| 11 | ZG40Cr19Ni39Nb | 1.4849 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 18.00 - 21.00 | 36.00 - 39.00 | 1.20- 1.80 | ≤0.50 | - | 1100℃ |
| 12 | ZG40Cr24Ni24Nb | 1.4855 | - | - | 0.30 - 0.50 | 1.00 - 2.50 | ≤2.00 | 23.00 - 25.00 | 23.00 - 25.00 | 0.80 - 1.80 | ≤0.50 | - | 1050℃ |
| 13 | ZG40Cr25Ni35 | 1.4857 | HP | SCH24 | 0.35 - 0.50 | 1.00 - 2.50 | ≤2.00 | 24.00 - 28.00 | 33.00 - 37.00 | - | ≤0.50 | - | 1100℃ |
| 14 | ZG1Cr20Ni32Nb | 1.4859 | - | - | 0.06 - 0.15 | 0.50 - 1.50 | ≤2.00 | 19.00 - 21.00 | 31.00 - 33.00 | 0.50 - 1.50 | ≤0.50 | - | 1050℃ |
| 15 | ZG45Cr12Ni60 | - | HW | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 10.00 - 14.00 | 58.00 - 62.00 | - | - | - | 1100℃ |
| 16 | ZG45Cr18Ni66 | - | HX | - | 0.35 - 0.75 | ≤2.00 | ≤2.00 | 15.00 - 19.00 | 64.00 - 68.00 | - | - | - | 1100℃ |
| 17 | ZG1Cr28Co50 | 2.4778 | - | - | 0.05 - 0.25 | 0.50 - 1.00 | ≤1.50 | 27.00 - 30.00 | ≤1.00 | ≤0.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 18 | ZG30Cr28Co50Nb | 2.4779 | - | - | 0.25 - 0.35 | 0.50 - 1.50 | 0.50 - 1.50 | 27.00 - 29.00 | - | 1.50 - 2.50 | ≤0.50 | Co:48.0 - 52.0 | 1200℃ |
| 19 | ZG40Cr28Ni48W5 | 2.4879 | - | SCH42 | 0.35 - 0.55 | 1.00 - 2.00 | ≤1.50 | 27.00 - 30.00 | 47.00 - 50.00 | - | ≤0.50 | W:4.0 - 5.5 | 1200℃ |

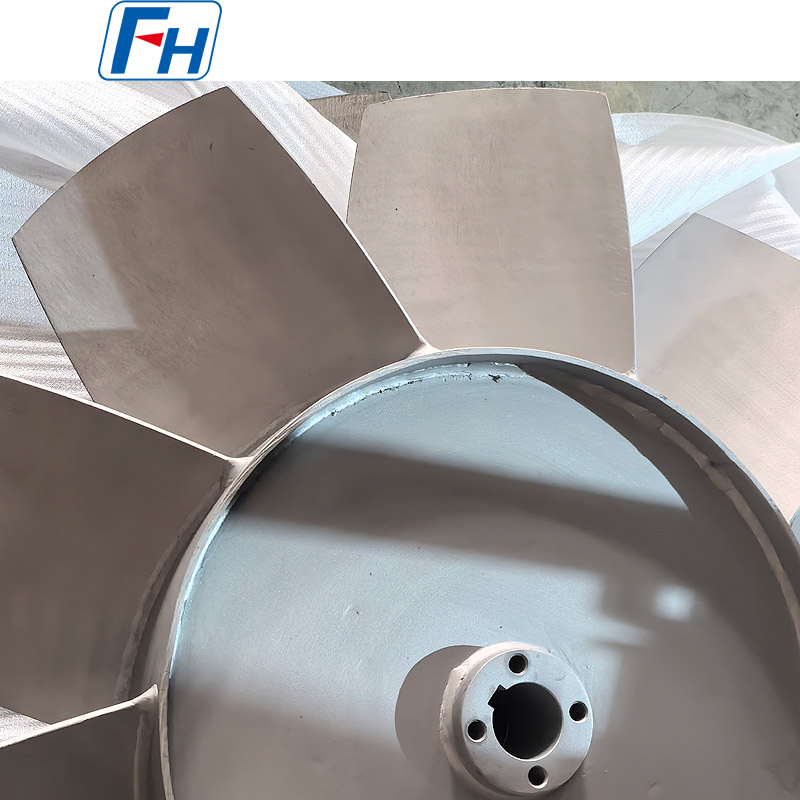

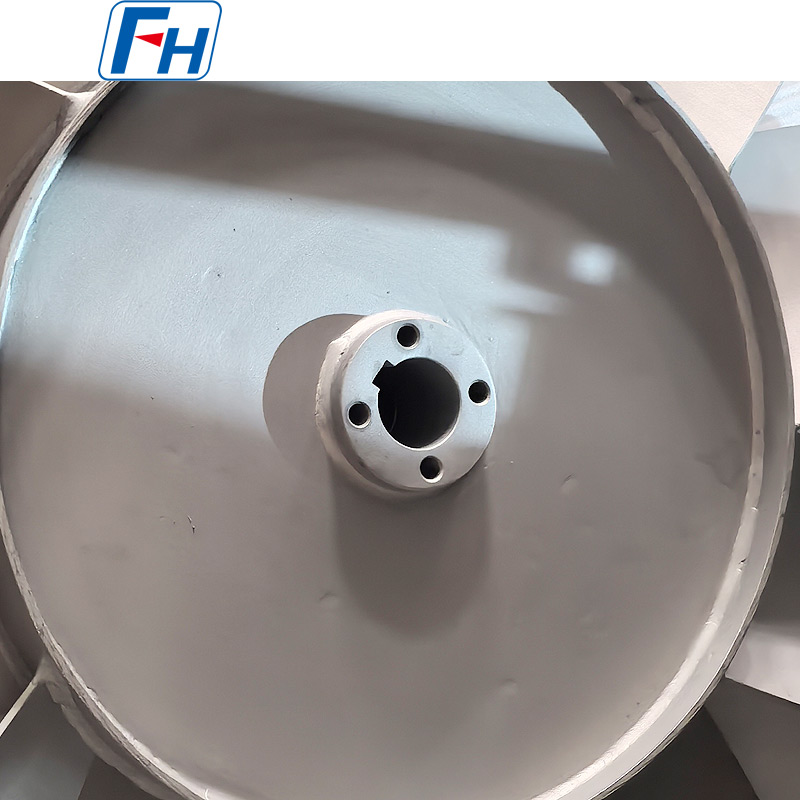

Genuina imaginibus FH® iuncta Fan Blades
Processus ordinans
1. Provide;
- Existens fan tractus seu dimensiones (diameter, hastile magnitudinis, genus laminae)
- Operans temperatus et atmosphaera
- Virtus motor et RPM
- Desideravit gradus materiales (vel commendemus)
- Librans gradus requiritur (G6.3 vexillum, G2.5 ad libitum)
2. proponit FH®;
- Materia commendaticiis fundatur in conditionibus tuis
- Ferrum profile ipsum ad efficientiam
- CAD trahens pro approbatione
- Pretium et plumbum tempus
3. Productio: 10-25 diebus opus
4. Delivery includit:
- Dynamic aequans fama
- Materia test libellum (MTC)
- Dimensionales inspectionem fama
- Institutionem et curam dux
FAQ:
Q1 : Quousque FH® conflati flabello durabunt ?
A: Service vita dependet a temperie et atmosphaera. Exspectationes typicae: 310S sub ≤700°C: 5-10 annis; 1.4849 ad 950°C: 2-5 annis; Inconel in ML°C : 1-3 annis. Regularis inspectio singulis mensibus 6-12 commendatur.
Q2: Quam materiam commendes fornacem meam?
A: Pro ≤700°C temperie: 310S. Pro 950°C carburizing: 1.4849. Nam >1000°C atmosphaerae infestantibus: Inconel 600/625. FH® commendationes materiales liberas praebet in certis conditionibus tuis.
Q3: Quid est momenti dynamicam conpensationem?
A: Unbalanced fan laminas causa portantes lapsum, fornacem tremor, strepitus, reducta efficientiam, et periculum crepuit. FH® librat singulas tabulas ad ISO 1940 G6.3 minimam (G2.5 in promptu) et famam aequilibrium includit.
Q4: Potesne reparare vel e converso-fectum meum scapulas ventilabrum exsistentes?
A: Ita. Reparare: rimas redintegrare possumus vel laminas quassatas reponere. Pro vicissim machinamentum: mitte nobis confectum tuum scapulas vel tractus - metiri, si fieri potest, materiam emendare, et rectus repositum efficiemus.
Q5: Quod est opus tuum?
A: 12 menses contra vitia fabricanda (rimas pugillo, vitia materialia, quaestiones librans). Normalis lapsum, scelerisque lassitudo, et corrosio non operiuntur – sed FH® materiam rectam pro conditionibus tuis ad vitam augendam commendabit.
